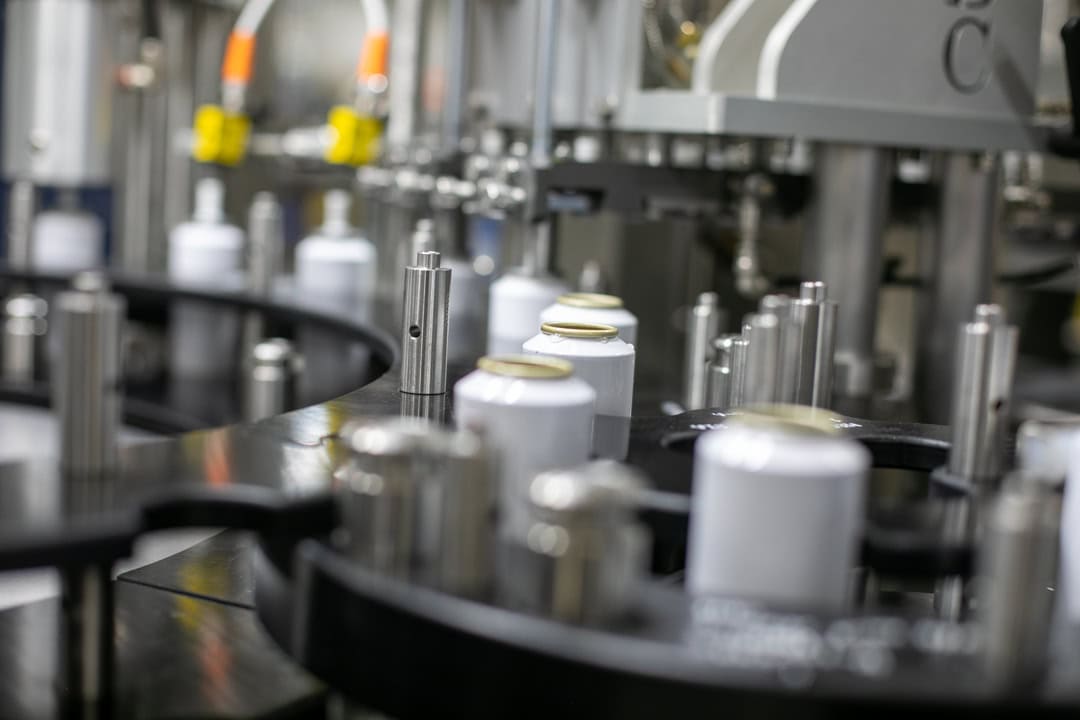

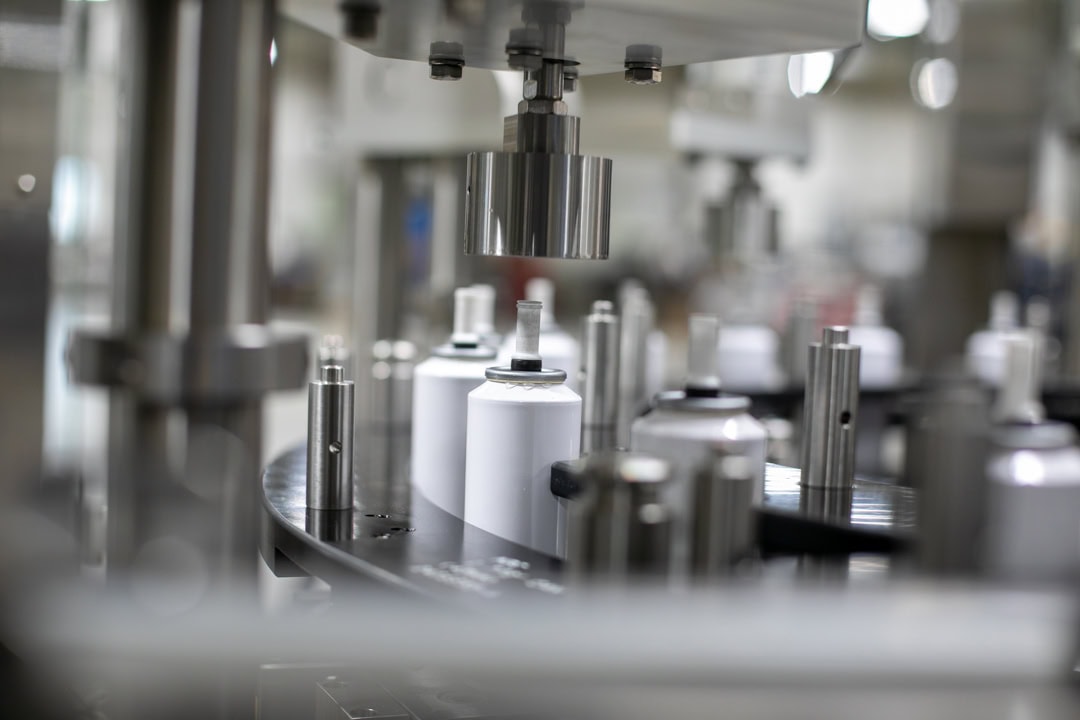

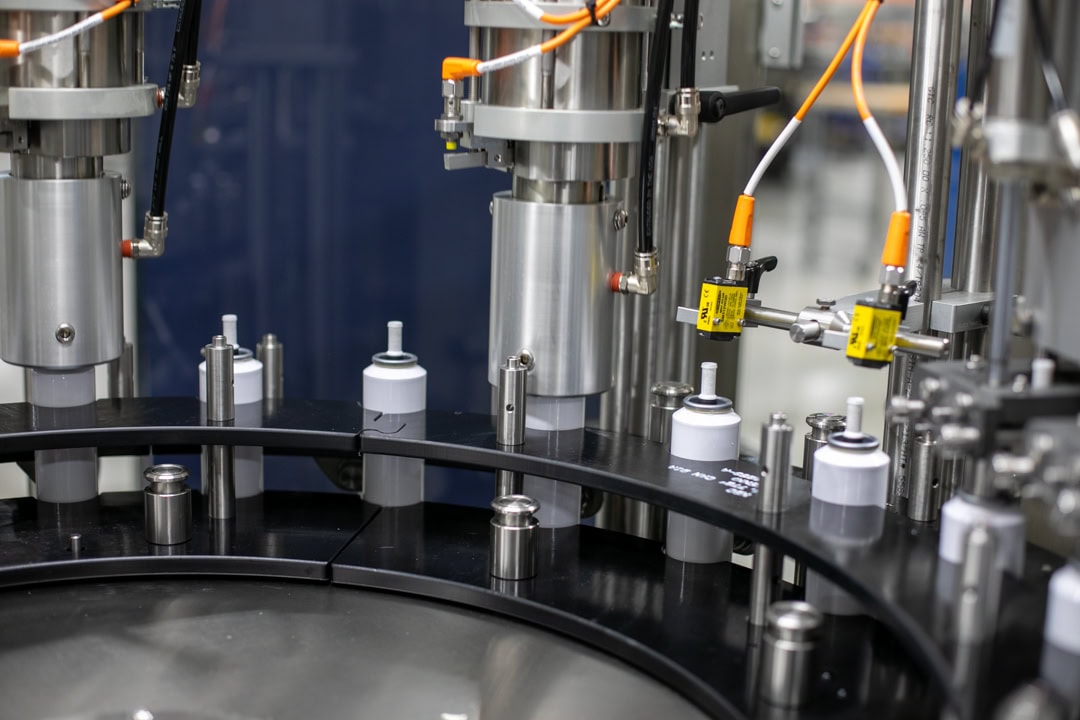

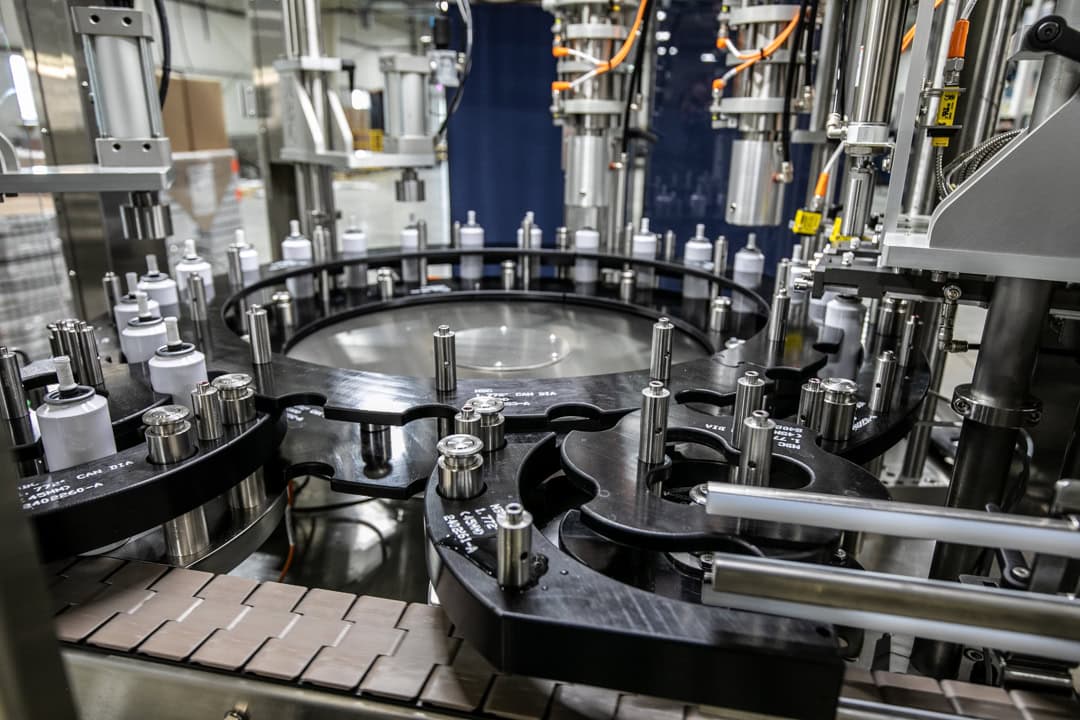

MBC manufactures a Piston Can Bottom Gasser Station for our Aerosol customers. The Piston Gasser will gas the unique proprietary container from the bottom. This station is available for our Rotary Index and Handline Machinery, as well as having the ability to retrofit to other vendor machinery.
up to 35 cans per minute
Metering Cylinder assembly 300 series stainless steel.

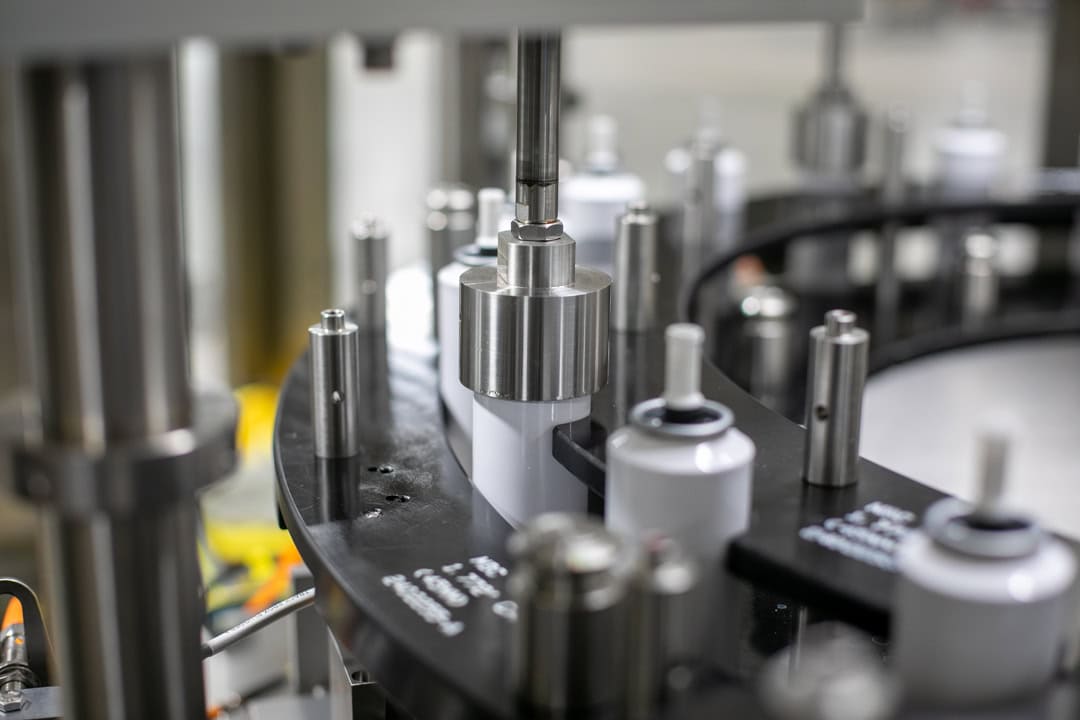

Dispense head assembly 300 series stainless steel.
Positive Close nozzle assembly 300 series stainless steel.
Additional set of Fill Station Product Contact parts -(Both Fill Stations)
Includes:
(2) Rotary Valve assemblies (440C SST),
(2) Metering Cylinder assemblies,
(2) Fill Tubes and Flanges and sanitary piping for Dispense Head,
(2) Dispense Head assemblies
(2) Positive Cutoff Nozzle assemblies,
Required Seals, O-rings, and Stainless Steel contact parts.
Note: Seals cannot be Buna-N

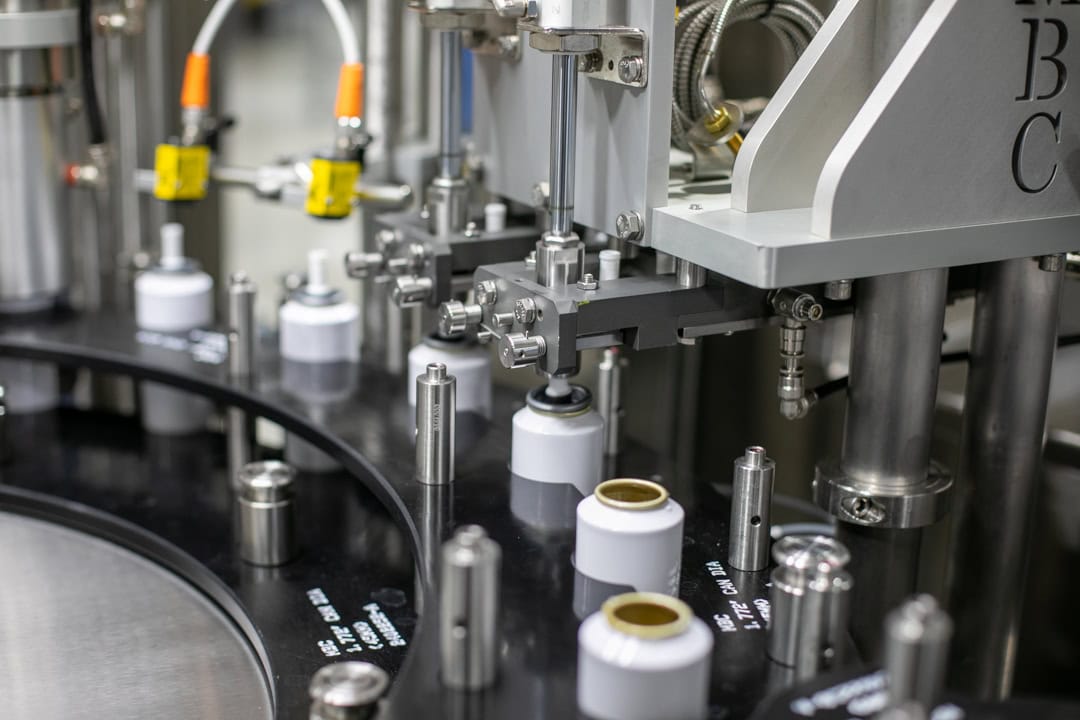

Dual Servo Can Lift and Gripper assembly
Dual Servo can lift with electronic adjust to deliver a vertical bottom up fill.

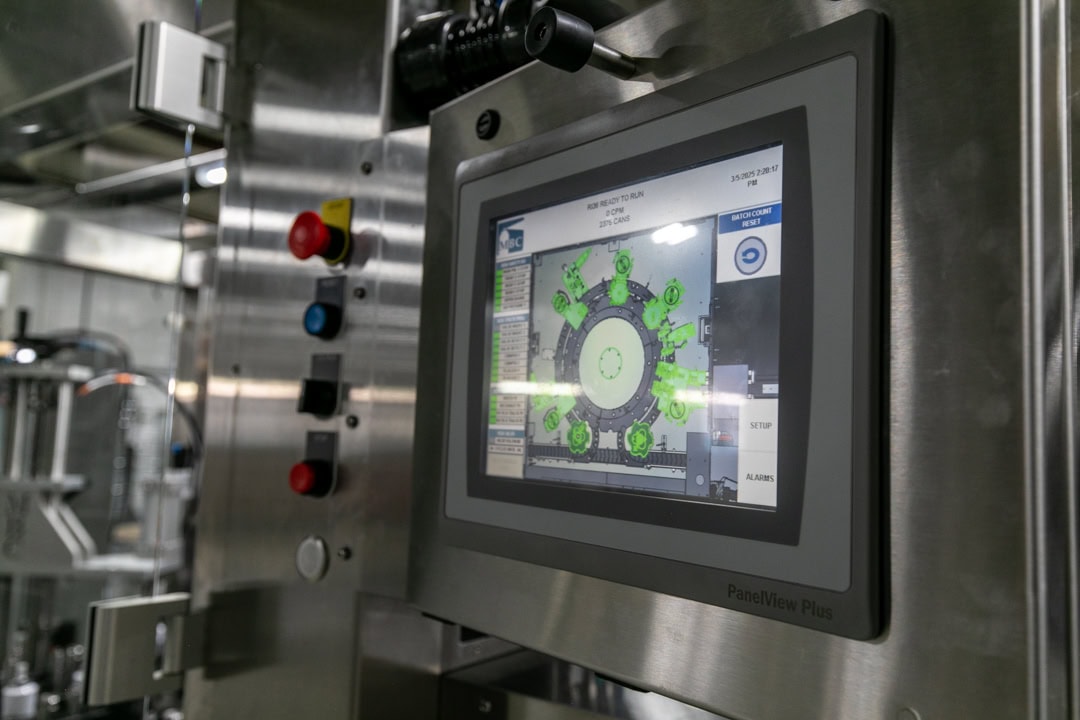

Recipe saving and recall up to 100 Recipe Storage capacity available – (expandable)
Fill Accuracy= + 0.2% to 0.5% by volume, (may vary based on product formulation and processing)
